The photographs below depict the typical gas well drilling operations found in Texas. Starting with a sand mining operation, then a well pad site that is being drilled and finally the ravages of natural gas production. The photos show how a heavy industrial site looks and operates, including the drilling process, open pit frac ponds, completed well site, gas separators to remove contaminants before putting gas into the pipelines, gas gathering lines, pipeline infrastructure to move gas from the gathering station to the compressor station, compresssors and associated infrastructure to further remove condensates and put compressed gas on the commercial pipelines. The final photo is of the San Bruno, California gas pipeline explosion in 2010 that killed 8 people, destroyed 38 homes and severely damaged another 120 homes - the explosion was felt 10 miles away at San Francisco International Airport.

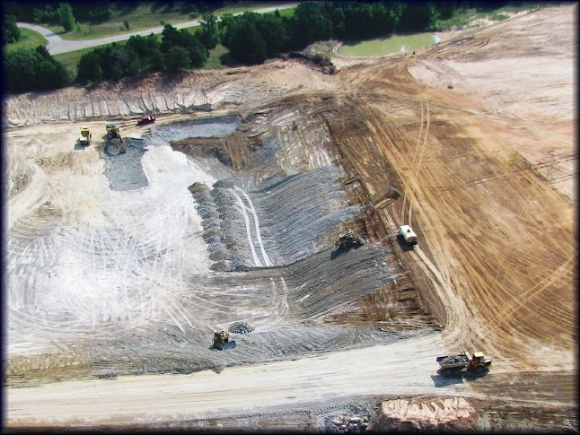

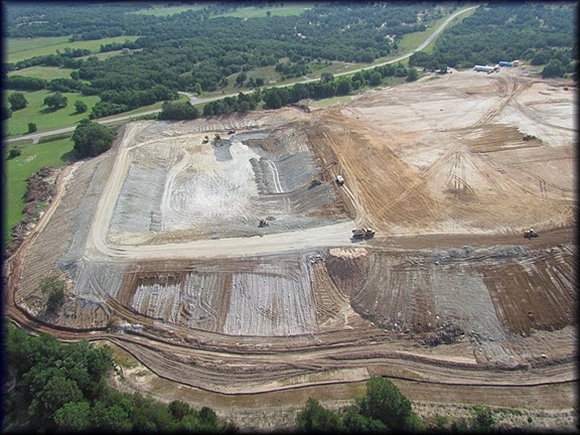

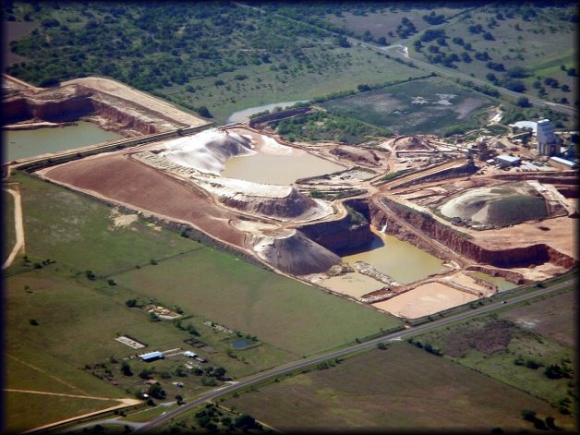

These photos were taken in 2010-2011 at sand mining operations in Muenster and Brady, Texas, a sand mine in Wisconsin, three Chesapeake and XTO gas well sites and one Midstream Compressor Station site in Arlington, Texas, at locations in Fort Worth and Tarrant County, Texas, at the Chesapeake Nomac-17 rig explosion and fire in Oklahoma in 2012, and at the san bruno pipeline explosion in 2010. In some photos you can clearly see the distance to residential homes is quite short. At the Eden SW site where the gathering station photos were taken the distance to homes is perhaps 200 feet.

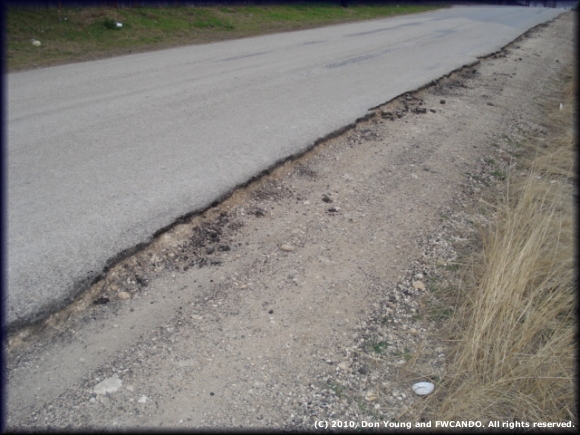

Road damage caused by frac trucks in Fort Worth, Texas
Road damage caused by frac trucks in Fort Worth, Texas
Road damage caused by frac trucks in Fort Worth, Texas

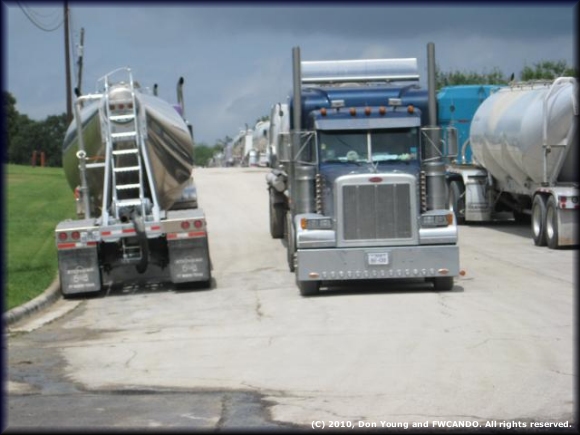

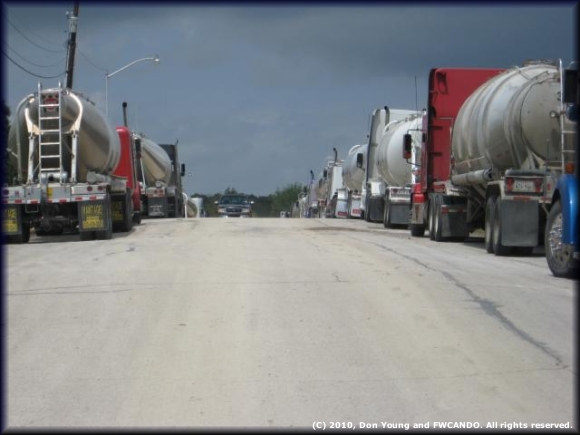

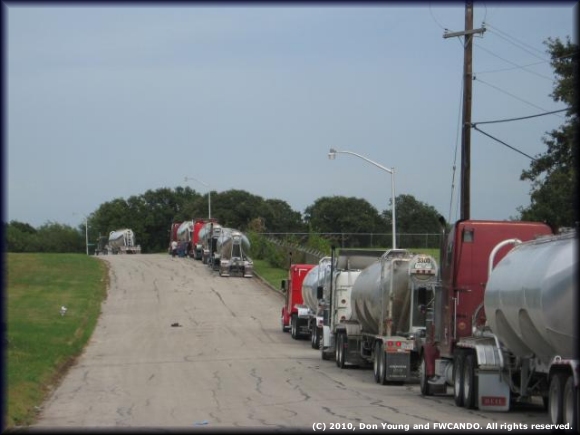

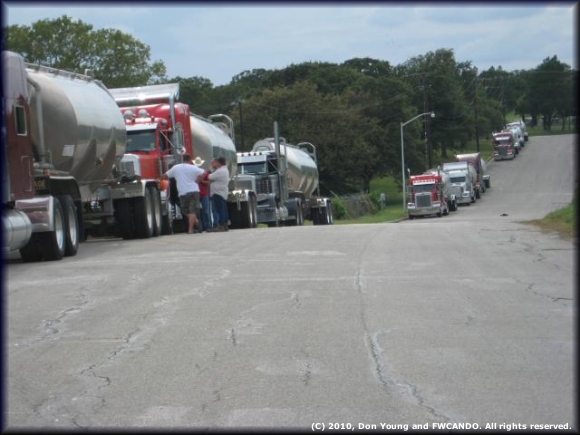

Typical frac truck traffic in Fort Worth, Texas
Typical frac truck traffic in Fort Worth, Texas
Typical frac truck traffic in Fort Worth, Texas
Typical frac truck traffic in Fort Worth, Texas

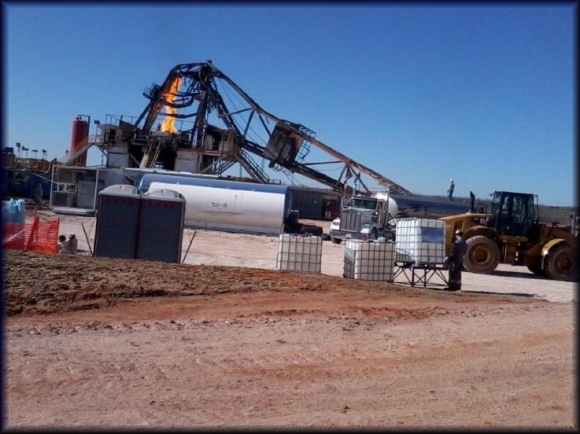

Drilling rig along US Highway 67 in Venus, Texas
Open pit frac pond in Arlington, Texas

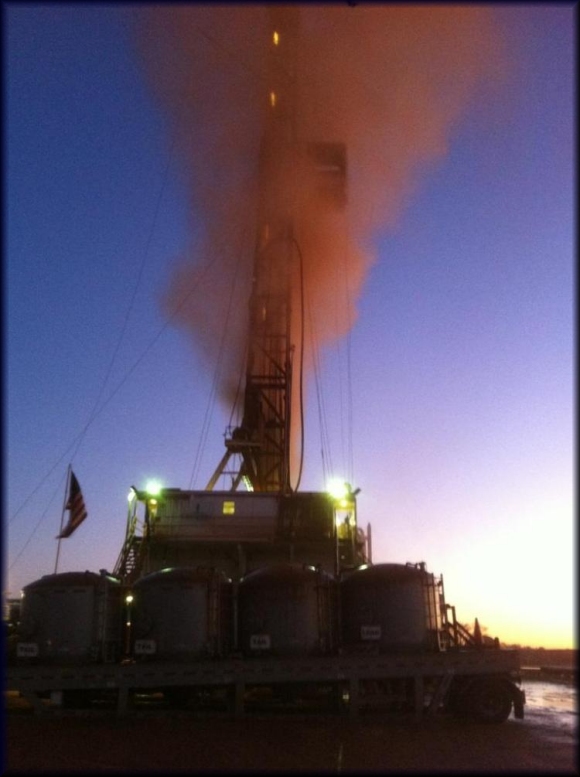

Drilling rig just off IH 20 in Arlington, Texas
Well pad site with standing water and frac chemical tanks in Arlington, Texas
"Christmas trees" on pre-production wells in Arlington, Texas

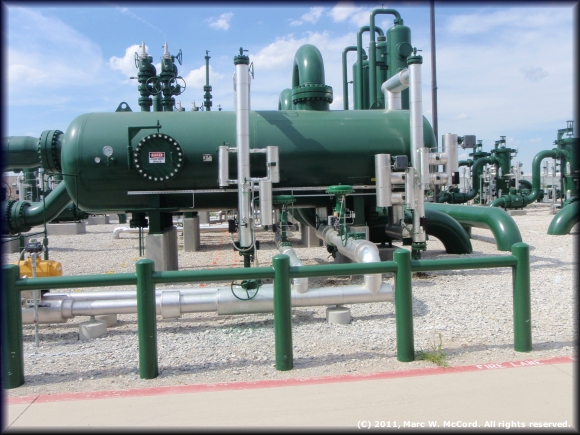

Gas separators and wastewater tanks in Arlington, Texas
Close-up of "Christmas tree" pre-production wellhead in Arlington, Texas
Completed wellheads with frac chemical tanks in the background in Arlington, Texas
Standing water at the base of a pre-production wellhead in Arlington, Texas
Gas separators at a wellsite in Arlington, Texas
Danger warning label on a wastewater tank in Arlington, Texas Note the flashpoint temperature is only 73 degrees!

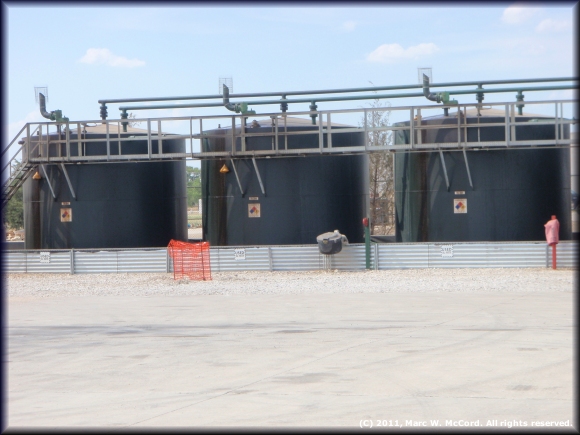

XTO Energy wastewater tanks (with label shown in previous slide) in Arlington, Texas

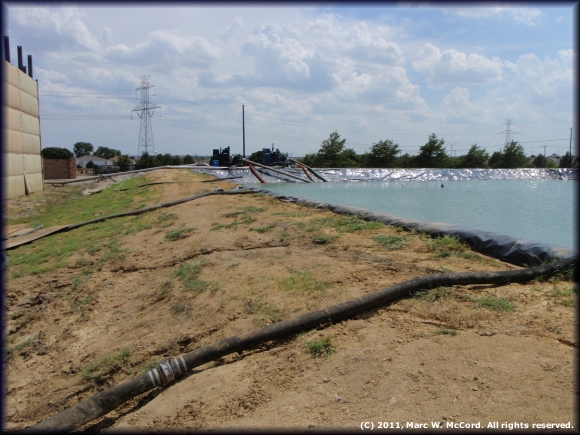

Open pit frac pond at an XTO Energy well site in Arlington, Texas

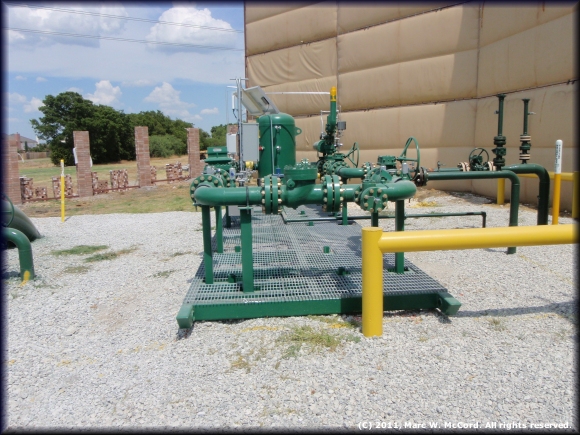

Gas gathering apparatus at an XTO Energy well site in Arlington, Texas sitting less than 200 feet from upper middle class homes

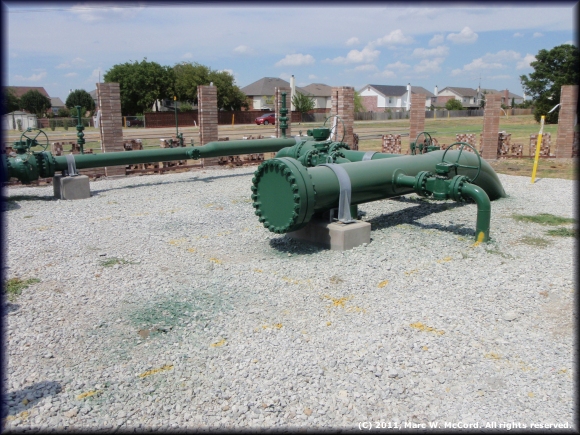

Gas gathering apparatus at an XTO Energy well site in Arlington, Texas sitting less than 200 feet from upper middle class homes
Gas gathering apparatus at an XTO Energy well site in Arlington, Texas sitting less than 200 feet from upper middle class homes
3,000 hp compressors at a Midstream compressor station in Arlington, Texas
6,000 hp compressors at a Midstream compressor station in Arlington, Texas
6,000 hp compressors at a Midstream compressor station in Arlington, Texas

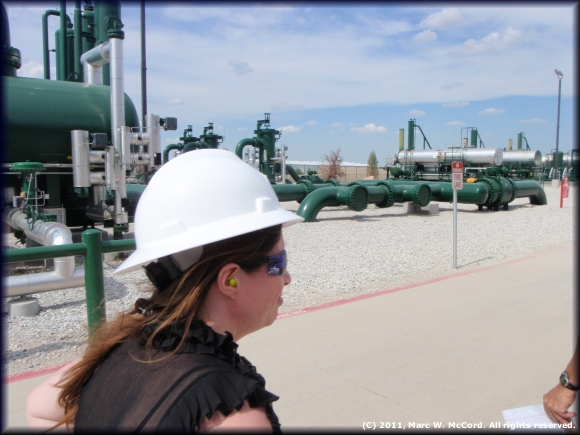

Gas distribution lines at a Midstream compressor station in Arlington, Texas
Gas distribution lines at a Midstream compressor station in Arlington, Texas

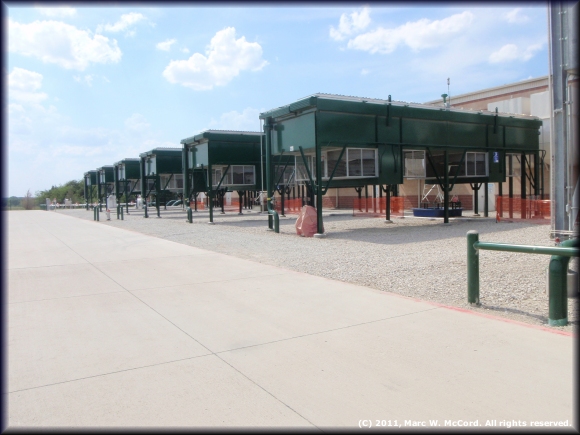

Condensate tanks at a Midstream compressor station in Arlington, Texas
Close-up of condensate tanks at a Midstream compressor station in Arlington, Texas

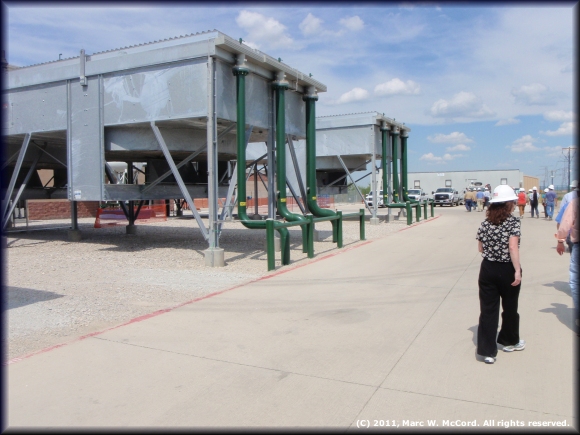

Distribution line compressors at a Midstream compressor station in Arlington, Texas
Distribution line compressors at a Midstream compressor station in Arlington, Texas
Wastewater illegally spilled at a wellsite in Fort Worth, Texas
Before and after photos of the backyard view at a wellsite in Fort Worth, Texas
Chesapeake Nomac-17 rig fire after explosion in Oklahoma (2012) Chesapeake "experts" hit an unexpected pressurized gas pocket just 900 feet below the surface and destroyed their drilling rig
Chesapeake Nomac-17 rig fire after explosion in Oklahoma (2012) Chesapeake "experts" hit an unexpected pressurized gas pocket just 900 feet below the surface and destroyed their drilling rig
Chesapeake Nomac-17 rig fire after explosion in Oklahoma (2012) Chesapeake "experts" hit an unexpected pressurized gas pocket just 900 feet below the surface and destroyed their drilling rig

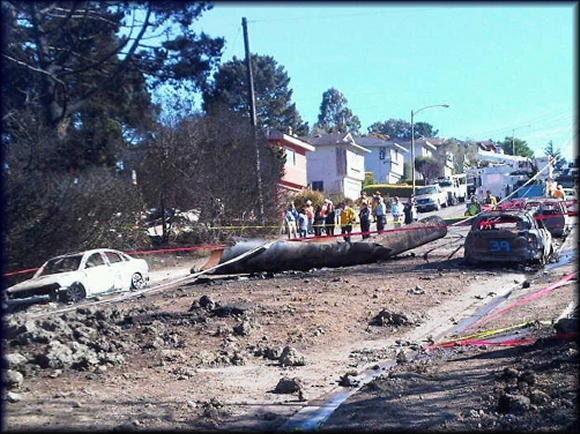

The finished product of the brewer's art San Bruno, California neighborhood after a gas pipeline explosion that killed 8 people, destroyed 38 homes and severely damaged 120 more homes
